Temperature tests Thermal Blankets

Below you can find an overview of test results which were performed on time-temperature sensitive products or conditioned products which were loaded on pallets and insulated with Temax insulation as a passive cooling system. The goal of the temperature test is to determine the time that a certain temperature can be preserved or maintained in a certain environment and condition. All tests are performed in a climate chamber with certified and validated temp tales – data loggers. If you have any questions in regards to these temperature test results, please feel free to contact us.
All test rapports and product qualifications are available in PDF files. Please send us an email.

1. Ambient pharmaceuticals (+15°C to +25°C) in airfreight - TARMAC tests

Test simulation = TARMAC on airfield = 6 HRS test time
- Pharmaceuticals = (+15°C to +25°C) and (+2°C to +30°C) and (+0°C to +40°C)
- Airfreight cold chain - Tarmac temperature simulation
- Profile testing = Winter (-15°C /+5°F) and Summer (+45°C / 114°F) tests
- Test load = Minimal load 8% and EN12546-2
- Greenhouse effects and solar power tests

TEST Airfreight TARMAC - 6HRS
EN-12546-2 Product Mass (50%)

Temax-4000 (T1-S1-B1)
Summer (+46°C) Winter (-18,5°C)

Krautz Temax Temperatur test thermal blankets Isolierfolien TARMAC Luftfracht Pharmazeutika

TEST Airfreight TARMAC - 5HRS
EN-12546-2 Product Mass (50%)

Temax-4000 (T1-S1-B1)
Solar Power on min-load

Krautz Temax solar power TARMAC Luftfracht Luchtvracht Fret Aérien

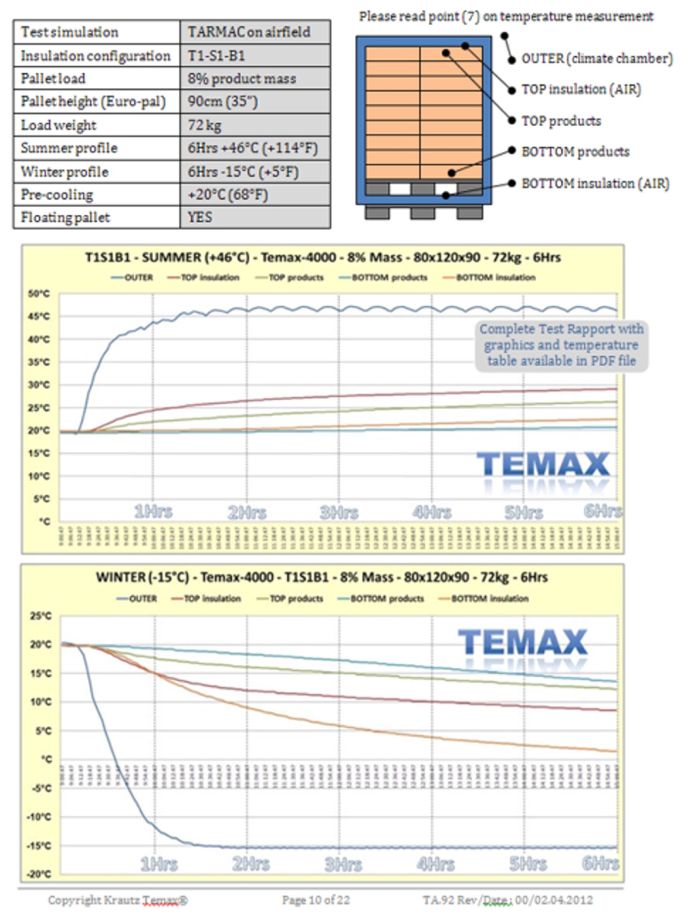

STRESS TEST Airfreight TARMAC - 6HRS
8% Product Mass

Temax-4000 (T1-S1-B1)
Summer (+45°C) Winter (-15°C)

Krautz Temax temperature test thermal blankets airfreight

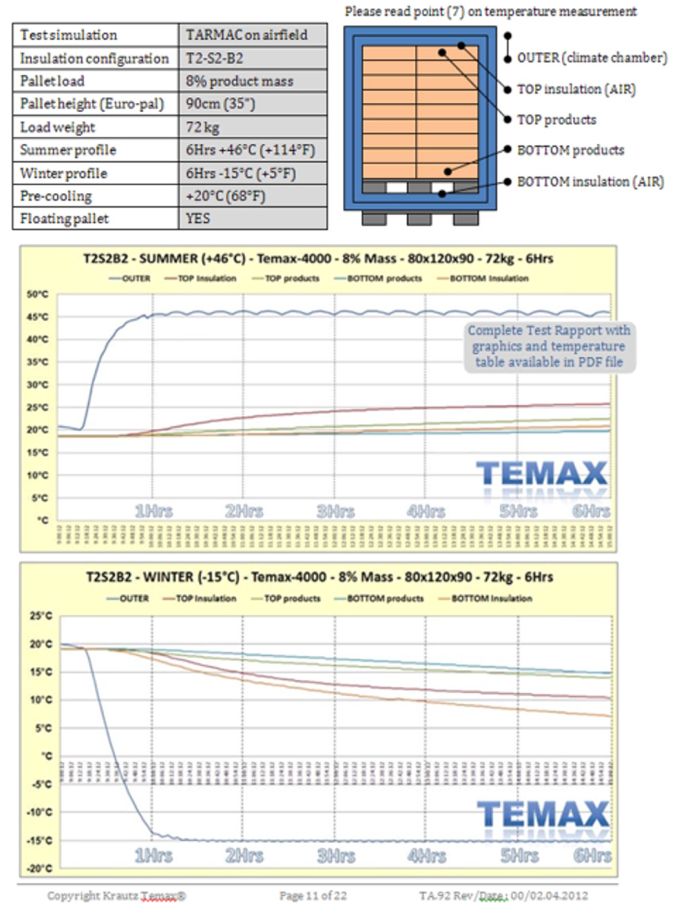

STRESS TEST Airfreight TARMAC - 6HRS
8% Product Mass

Temax-4000 (T2-S2-B2)
Summer (+45°C) Winter (-15°C)

Krautz Temax temperature graphic Airfreight thermal blankets pharmaceuticals

STRESS TEST Airfreight TARMAC - 6HRS
8% Product Mass

Temax-4000 (T1-S1-B1) + TDB
Summer (+45°C) Winter (-15°C)

Krautz Temax temperature test thermal insulated covers

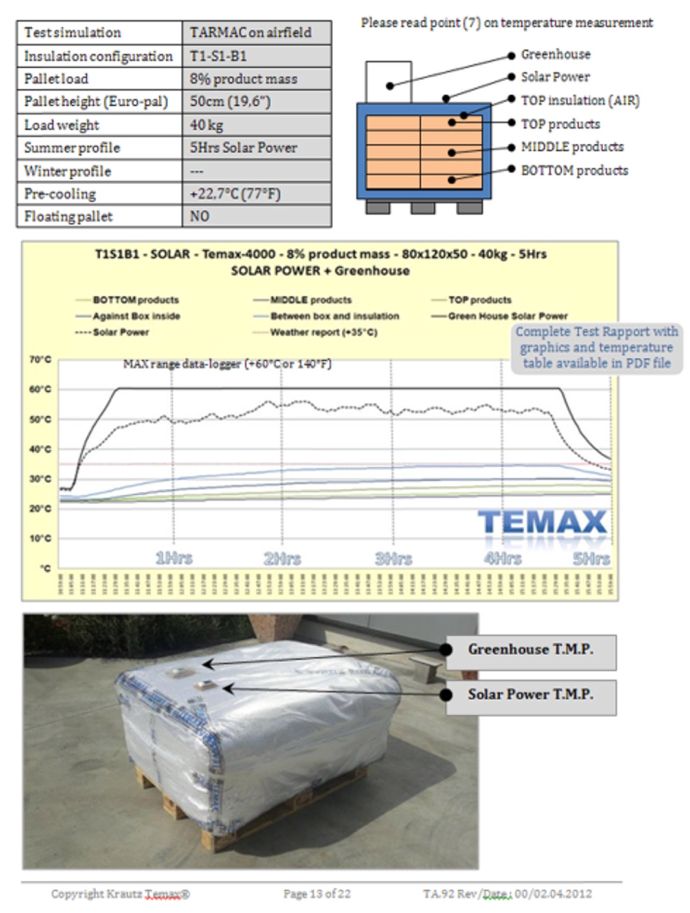

STRESS TEST Airfreight TARMAC - 5HRS
8% Product Mass

Temax-4000 (T1-S1-B1)
Solar Power + Greenhouse effect

Krautz Temax solar power greenhouse effect temperature test TARMAC airfreight aircargo

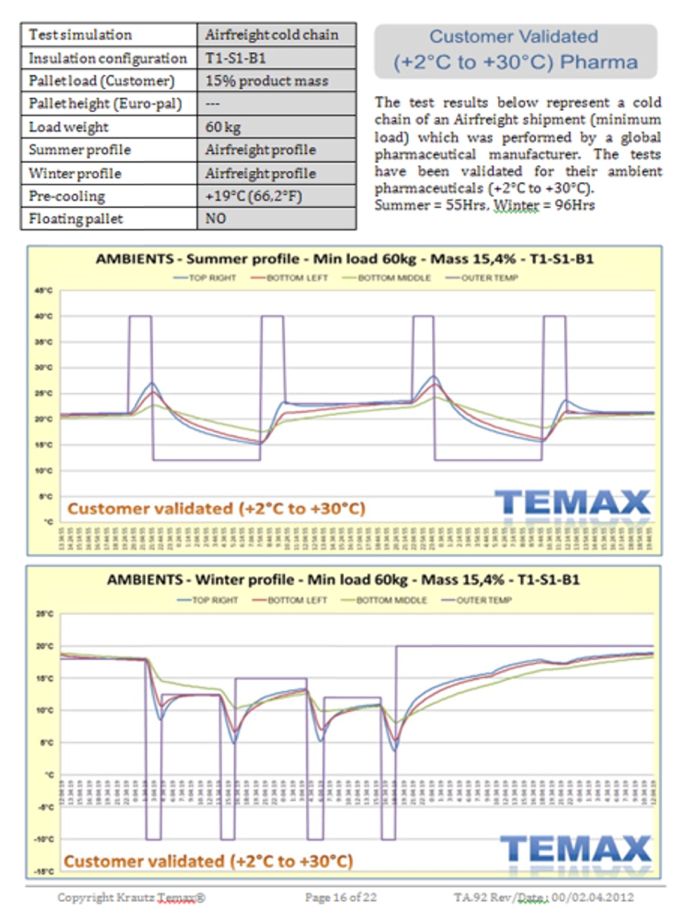

Customer validation - 96HRS
Airfreight TARMAC simulation

Temax-4000 (T1-S1-B1)
Summer (+40°C) Winter (-10°C)
15% minimum load (96Hrs and 55Hrs)

Krautz Temax validation Validierung Validatie TARMAC ambient pharmaceuticals Pharmazeutika Farmaceutica Pharmaceutique

2. Chilled pharmaceuticals (+2°C to +8°C) in airfreight - TARMAC tests

Test simulation = TARMAC on airfield = 6 HRS test time
- Pharmaceuticals = (+2°C to +8°C)
- Profile testing = Winter (-15°C /+5°F) and Summer (+45°C / 114°F) tests
- Test load = Minimal load 16%

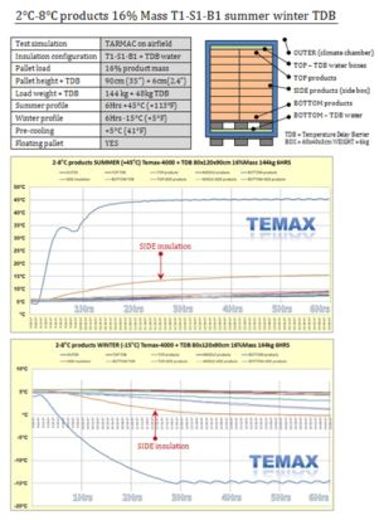

STRESS TEST Airfreight TARMAC - 6HRS
16% Product Mass

Temax-4000 (T1-S1-B1) + TDB
Summer (+45°C) Winter (-15°C)

Temax validation 2-8°C pharmaceuticals in airfreight thermal blankets

More test results at next update.

All test results "product qualifications" are available in PDF format. Please send us a mail for more information
