EPS Polystyrene insulated thermal pallet shipper with integrated thermal seal – NO RISKS

Usage of thermal pallet shippers

EPS Polystyrene insulated thermal pallet shippers are used for the temperature protection of time-temperature sensitive products such as pharmaceuticals or food products during transport or storage. The EPS pallet shippers are manufactured out of Polystyrene, called EPS, which is a light weight insulation material. The thermal pallet shippers offer protection against hot or cold temperatures in which the thermal performance is depending on the temperature situations, conditions and thermal energy exchange.

Temax EPS thermal pallet shipper with thermal seal

The company Krautz Temax has invested in special machines to produce EPS Polystyrene pallet shippers. All pallet shippers can be produced tailor made according to the wishes and specifications of the customer. Unique on the Temax thermal pallet shippers is the thermal seal at the closure. This thermal seal comes automatically into action when the shipper plates are pressed to close. The goal or purpose of the thermal seal is to prevent any temperature risks due to a bad closing of the operator which appears in standard shippers. Due to the thermal seal, thermal bridges, where air can float in our out the pallet shipper, are completely avoided.

BIO based EPS Polystyrene

The company Krautz-Temax has the possibility to manufacture BIO based EPS for producing BIO-degradable EPS pallet shippers and boxes.

User instructions – Protocol pictures

The pictures below show how the Temax Pallet shipper is created. The pallet shipper in the pictures is equipped with special spaces for cardboard boxes filled with gel packs or PCM “Phase Change Materials”.
2 medium 300x225

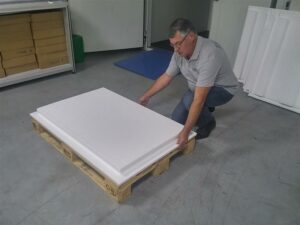

Bottom plate of pallet shipper on pallet

5 medium 300x225

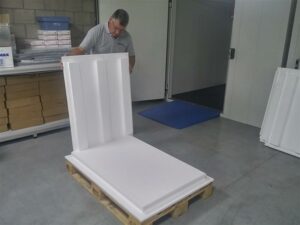

Placing side panel on bottom plate

6 medium 300x225

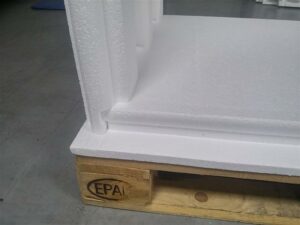

THERMAL SEAL connection side-bottom
No thermal bridge – NO risks

9 medium 300x225

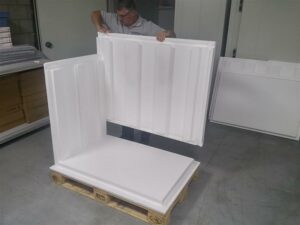

Back panel on bottom and side panel
THERMAL SEAL – side + bottom

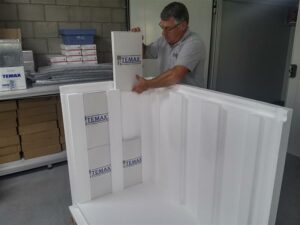

17 medium 300x225

Boxes gelpacks or PMC in side panel

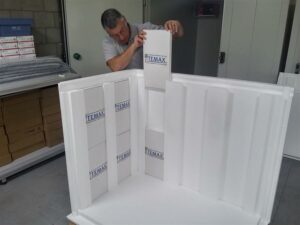

18 medium 300x225

Boxes gelpacks or PMC in back panel

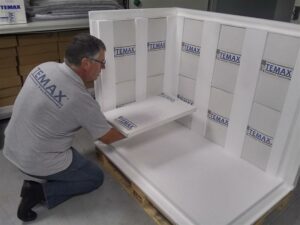

21 medium 300x225

Boxes Gelpacks – PCM on bottom panel

26 medium 300x225

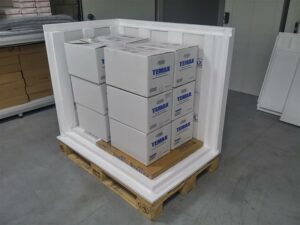

Loading goods on gelpack boxes

27 medium 300x225

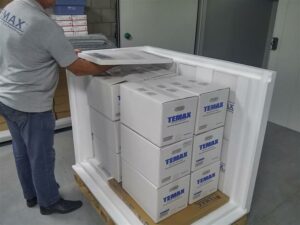

Boxes gelpacks or PCM on top of products

30 medium 300x225

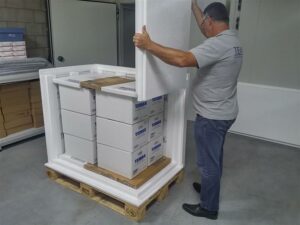

Placing side panel + THERMAL SEAL

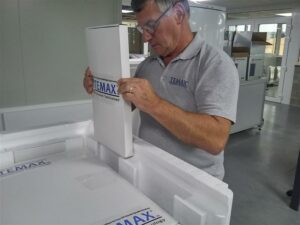

33 medium 300x225

Boxes gelpacks or PCM in side panel

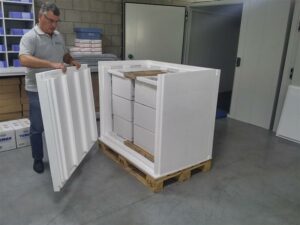

35 medium 300x225

Placement front panel

37 medium 300x225

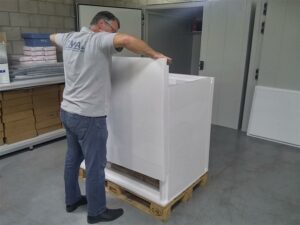

THERMAL SEAL – bottom and side panels

39 medium 300x225

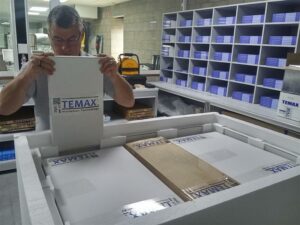

Boxes gelpacks or PCM in front panel

43 medium 300x225

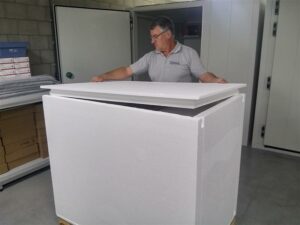

Placement top panel

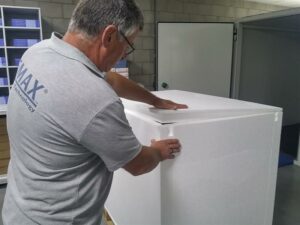

45 medium 300x225

THERMAL SEAL : top + sides + front + back

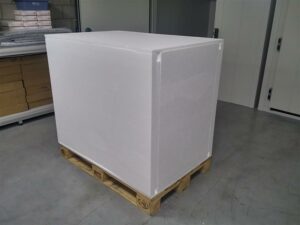

47 medium 300x225

READY for transport

UNIQUE – THERMAL SEAL

All panels are automatically connected to each other by a pressed thermal seal to prevent possible thermal bridges = NO cold or warm air can float in the box.

NO TEMPERATURE RISKS due to bad or incorrect usage
– Patented System –

Temperature tests

The Temax EPS Polystyrene pallet shipper has been tested and qualified according to the Temax temperature performance tests. All test results and qualification reports are available on request.

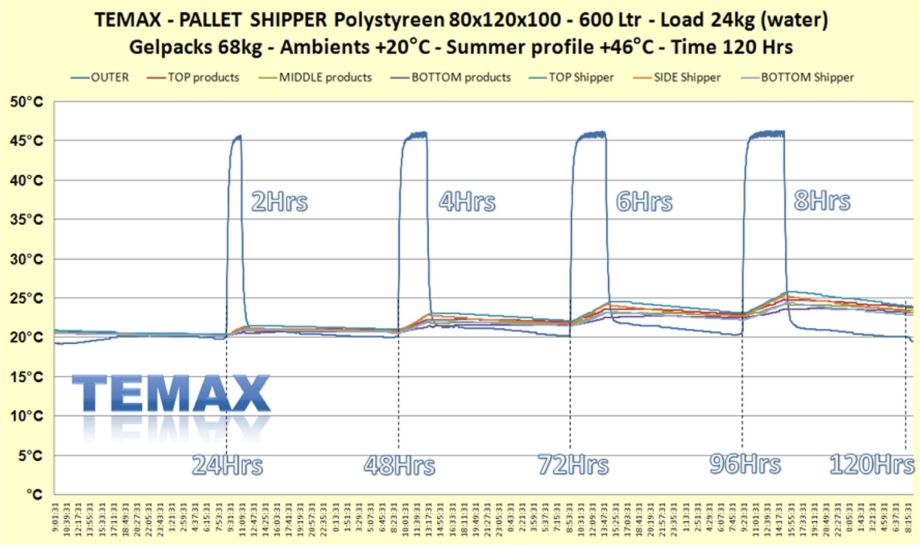

TEST 1 = SUMMER profile – Ambient Pharmaceuticals (20°C) – Airfreight TARMAC simulation

Grafiek zomer profiel

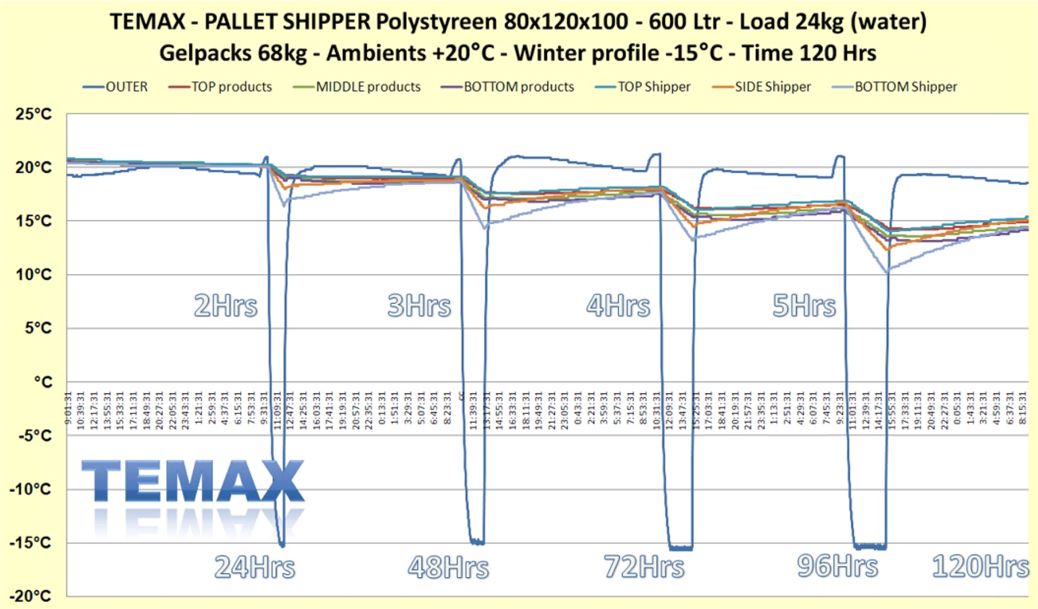

TEST 2 = WINTER profile – Ambient Pharmaceuticals (20°C) – Airfreight TARMAC simulation

Grafiek winter profiel

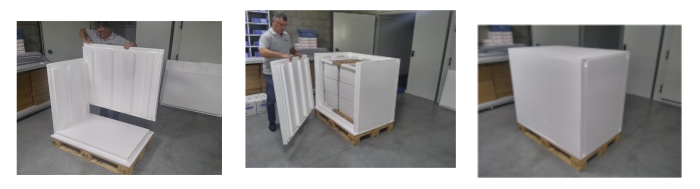

Palletbox temax 04
